Engineered for Reliable Industrial Performance
Providing customized evaporation and drying solutions for a wide range of industrial processes and wastewater treatment applications.
PRODUCT OVERVIEW

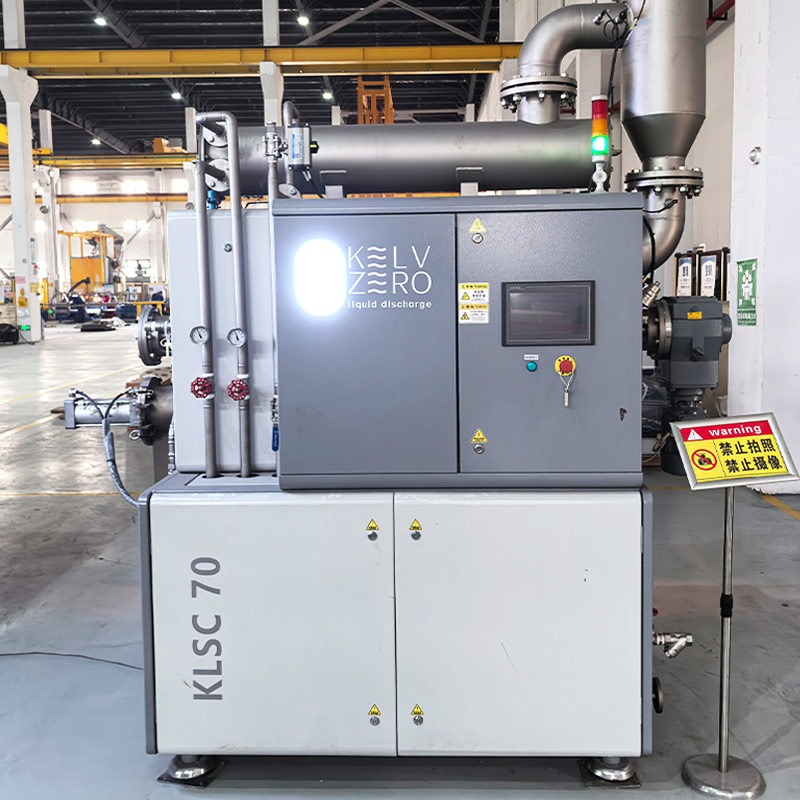

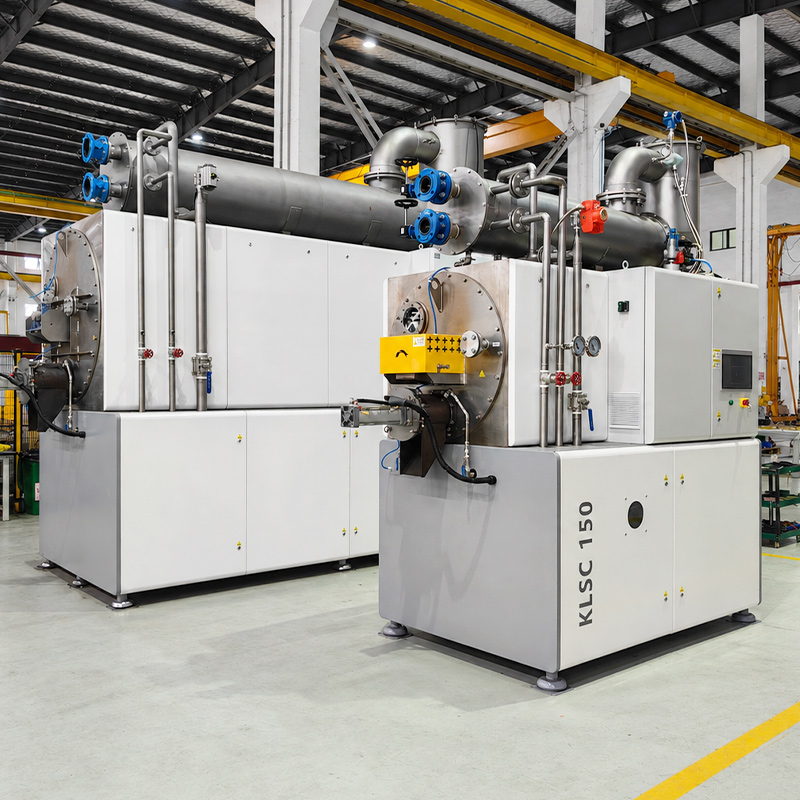

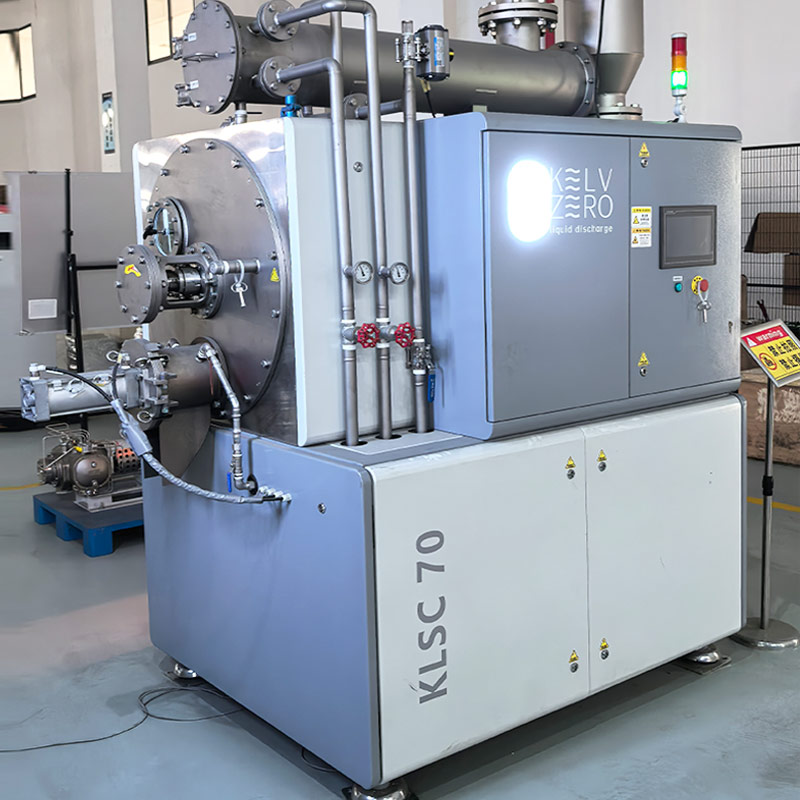

KLSC Mother Liquor Dryer
KLSC Mother Liquor Dryer is specially developed for efficient drying and crystallization of high-concentration mother liquor in chemical and pharmaceutical industries. It features excellent thermal efficiency, stable operation, and outstanding performance in handling viscous and high-solid content materials.
√
Certified Industrial Quality
Complies with CE certification and ISO9001 quality management system standards for global industrial applications.
√
Multiple Model Options
Available in multiple capacities and configurations to meet different wastewater treatment requirements.
√
High Efficiency Drying
Advanced drying technology effectively handles high-viscosity mother liquor with excellent heat transfer and low energy consumption.
PRODUCT ADVANTAGES
Key Features of KLSC Mother Liquor Dryer
01
Highly Integrated
Highly integrated system with less supporting equipment, greatly reducing installation space and project cost.
02
Strong Material Adaptability
Strong adaptability to materials, can be used for evaporation of solutions with high viscosity and easy to scale and crystallize.
03
Anti-Scaling Scraper Design
Special scraper design effectively prevents scaling, ensuring no attenuation of heat exchange performance.
04
Mother Liquor Specialist
Specially designed for evaporating mother liquor, used for drying and desalination of mother liquor.
05
Energy Efficient
Low energy consumption — evaporation of one ton of water only consumes about 1.2 tons of steam.
06
Intelligent & Convenient
High degree of automation, simple operation, easy maintenance, and built-in 4G module for remote monitoring.
PRODUCT PARAMETERS
Technical Specifications
Model
Capacity （t/d）
Power （kW）
Dimensions(mm)
Load (kg)
Product Name
KLSC70
1.4
3.67
2540*1290*2720
1900
KLSC Mother Liquor Drying Series
KLSC70
2540*1290*2720
KLSC150
3
5.57
3180*1390*3250
3000
KLSC Mother Liquor Drying Series
KLSC150
3180*1390*3250
KLSC250
5
8.37
4400*1540*3770
4500
KLSC Mother Liquor Drying Series
KLSC250
4400*1540*3770
KLSC375
7.5
11.37
4920*1640*3940
5500
KLSC Mother Liquor Drying Series
KLSC375
4920*1640*3940
KLSC500
10
14.29
5200*1840*4310
8000
KLSC Mother Liquor Drying Series
KLSC500
5200*1840*4310
KLSC750
15
16.29
6070*2040*4510
11500
KLSC Mother Liquor Drying Series
KLSC750
6070*2040*4510
WHY CHOOSE US
Benefits of Choosing TIANCHENG
Customized Engineering Solutions
We provide customized wastewater treatment solutions based on different water characteristics, processing requirements, and industrial applications to ensure efficient and reliable system performance.
Tailor-Made Design
Optimized solutions based on customer requirements.
Process Optimization
Professional engineering design for better efficiency.
Industry Experience
Solutions covering multiple industrial fields.
Complete Support
From design to project implementation.
Advanced Manufacturing Quality
As a source manufacturer, Tiancheng controls the complete production process from design and fabrication to quality inspection, ensuring stable equipment performance.
Factory Direct Production
Direct manufacturing with strict quality control.
Precision Fabrication
Advanced equipment ensures production accuracy.
Quality Inspection
Multiple inspection procedures before delivery.
Reliable Performance
Designed for long-term industrial operation.
Energy-Saving Operation
Through optimized evaporation technology and efficient system design, our equipment helps customers reduce energy consumption while maintaining stable treatment performance.
Lower Energy Cost
Improves energy utilization efficiency.
Stable Operation
Maintains consistent treatment performance.
Efficient Process
Enhances overall production efficiency.
Sustainable Solution
Supports environmentally friendly production.
Comprehensive Technical Support
We provide professional support throughout the entire project lifecycle, including technical consultation, installation guidance, commissioning, and after-sales service.
Technical Consulting
Professional engineering communication.
Installation Support
Guidance for equipment installation.
Project Service
Support throughout project delivery.
After-Sales Support
Long-term customer assistance.
LOOKING FOR A RELIABLE WASTEWATER TREATMENT SOLUTION?
Contact our experts today to discuss your project requirements. We will help you select the most suitable equipment and provide professional recommendations based on your process needs.
APPLICATIONS
Industries We Serve
Landfill Leachate
Effective treatment of high-COD and high-salinity landfill leachate, helping reduce discharge volume and meet environmental standards.
Petrochemical Industry
Designed for complex petrochemical wastewater streams, improving treatment efficiency and supporting resource recovery.
Surface Treatment
Suitable for electroplating and metal finishing wastewater with high salt concentrations and challenging contaminants.
Pharmaceutical Industry
Supports the treatment of pharmaceutical wastewater with varying compositions while maintaining reliable operation.
APPLICATION CASE
Successful KLSC Equipment Projects Worldwide
CASE 01
HITACHI ASTEMO CHASSIS(SUZHOU) CO., LTD
Project Name
Zero Liquid Discharge Treatment Project of Hitachi Astemo Chassis
Project Address
Suzhou, Jiangsu
Treatment Type
Cleaning Wastewater
Designed Water Capacity
2 t/h
Process
MVR + Scraper Drying
Effluent Requirements
pH 6.0~8.0
Conductivity ≤350 µS/cm
TDS ≤1000 mg/L
COD ≤30 mg/L
Conductivity ≤350 µS/cm
TDS ≤1000 mg/L
COD ≤30 mg/L
CASE 02
DONGYANG PRECISION MACHINERY (KUNSHAN) CO., LTD.
Project Name
Zero Liquid Discharge Project of Dongyang Precision Machinery (Kunshan)
Project Address
Suzhou, Jiangsu
Treatment Type
Nickel-containing Wastewater, Dyeing Wastewater, Phosphate-containing Wastewater
Designed Water Capacity
Nickel-containing Wastewater: 1.8 t/h
Dyeing Wastewater: 3.6 t/h
Phosphate-containing Wastewater: 1.5 t/h
Dyeing Wastewater: 3.6 t/h
Phosphate-containing Wastewater: 1.5 t/h
Process
Nickel-containing Wastewater: MVR + Scraper Drying
Dyeing Wastewater: MVR + Scraper Drying
Phosphate-containing Wastewater: Scraper Drying
Dyeing Wastewater: MVR + Scraper Drying
Phosphate-containing Wastewater: Scraper Drying
Solids Requirements
Moisture content ≤15%
CASE 03
INNER MONGOLIA ZHONGSHUI ENVIRONMENTAL TECHNOLOGY CO., LTD.
Project Name
Evaporation Mother Liquor Crystallization Project of Inner Mongolia Zhongshui Environmental Technology
Project Address
Ordos, Inner Mongolia
Treatment Type
Evaporation Mother Liquor
Designed Water Capacity
0.75 t/h
Process
Scraper Drying
Solids Requirements
Moisture content ≤15%
CASE 04
NANJING HUANMEI TECHNOLOGY CO., LTD.
Project Name
Leachate Treatment and Mother Liquor Drying Project of Xuzhou Yanqun Landfill
Project Address
Xuzhou, Jiangsu
Treatment Type
Leachate Evaporation Mother Liquor
Designed Water Capacity
1 t/h
Process
Scraper Drying
Effluent Requirements
pH 6.0~8.0
Ammonia Nitrogen ≤50 mg/L
TDS ≤1000 mg/L
COD ≤500 mg/L
Ammonia Nitrogen ≤50 mg/L
TDS ≤1000 mg/L
COD ≤500 mg/L
Solids Requirements
Moisture content ≤12%
FAQ
Frequently Asked Questions
What Information Is Required for Equipment Selection?
To recommend the most suitable solution, we typically require information such as wastewater characteristics, treatment capacity, operating conditions, and project requirements.
Can Your Equipment Handle Different Wastewater Compositions?
Yes. Our systems can be engineered to process a wide range of industrial wastewater streams with varying concentrations, compositions, and treatment objectives.
How Long Does Equipment Manufacturing Usually Take?
Production time depends on equipment type, project complexity, and customization requirements. Our team will provide an estimated delivery schedule during the quotation stage.
Do You Provide Turnkey Project Solutions?
Yes. We provide comprehensive services including system design, equipment manufacturing, installation guidance, commissioning support, and technical consultation.
How Can I Get a Customized Proposal?
Simply send us your project details and process requirements. Our engineering team will evaluate your needs and provide a tailored solution together with a detailed quotation.
