PRODUCT OVERVIEW

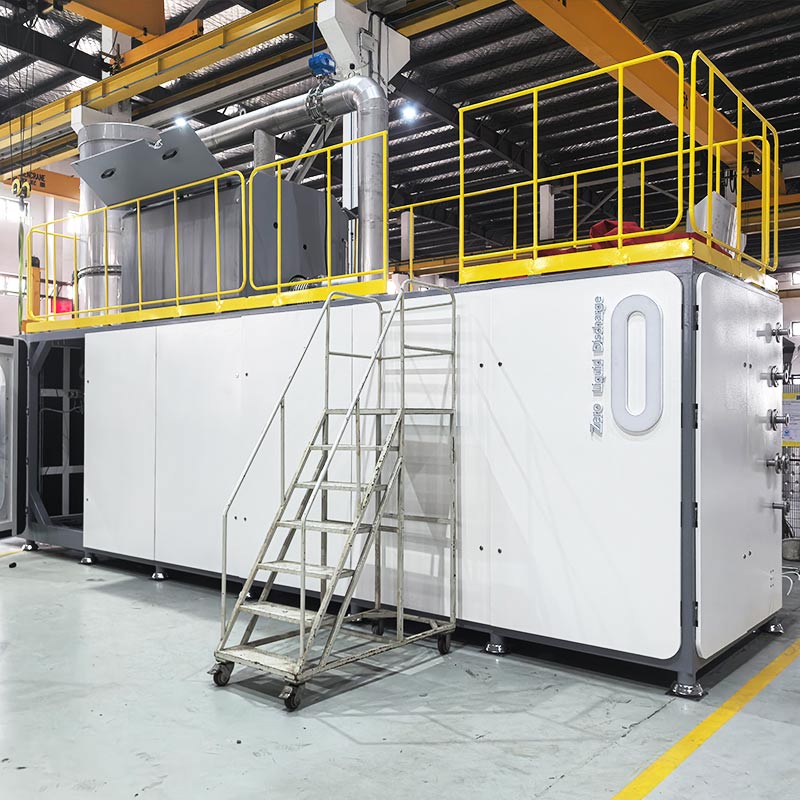

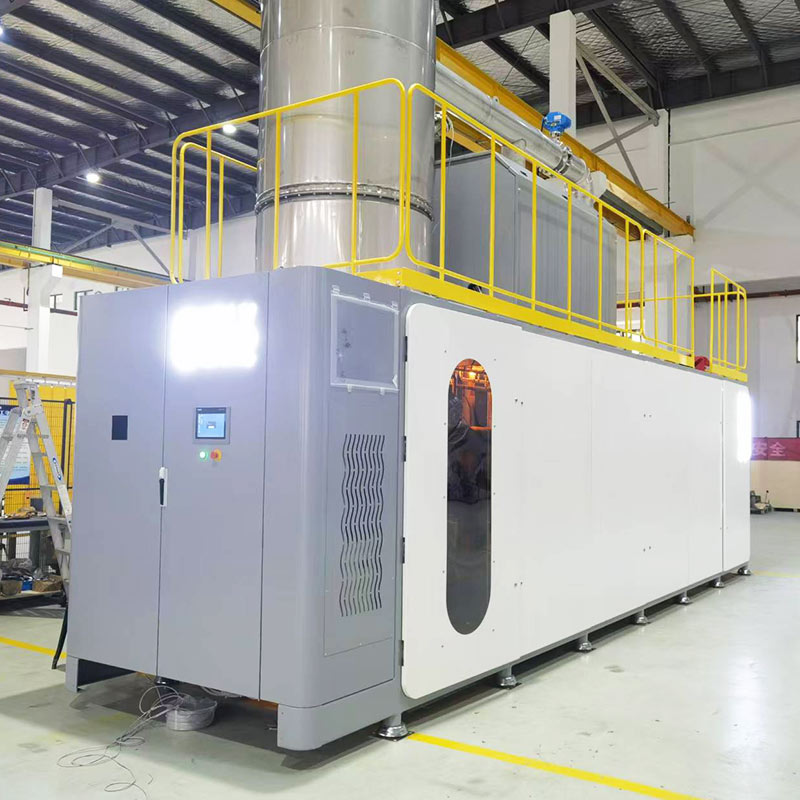

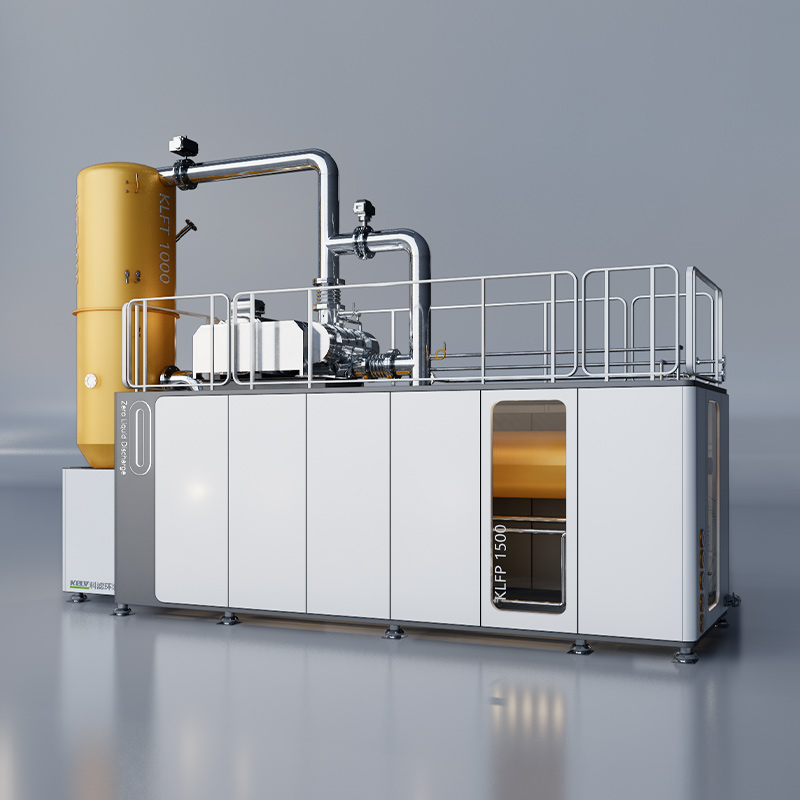

KLFT Forced Circulation Evaporation
KLFT Forced Circulation Evaporation is an industrial evaporation system engineered for stable long-term operation in complex production environments. It features a robust structural design and flexible configuration, making it suitable for integration into various wastewater treatment and resource recovery processes across different industries.
√
Certified Industrial Quality
Complies with CE certification and ISO9001 quality management system standards for global industrial applications.
√
Multiple Model Options
Available in multiple capacities and configurations to meet different wastewater treatment requirements.
√
Flexible System Integration
Can be easily integrated with pre-treatment, membrane, or crystallization systems for complete process solutions.
PRODUCT ADVANTAGES
Key Features of KLFT Forced Circulation Evaporation
01
Robust Performance
Widely used for large processing volumes, high viscosity wastewater, and systems prone to scaling and crystal precipitation.
02
Modular Skid Design
Skid-mounted structure reduces footprint and significantly shortens installation time.
03
Off-Site Assembly
Modular design allows prefabrication, easy transport, and rapid installation.
04
Smart Control System
PLC touch-screen control ensures stable and intuitive operation.
05
High Automation
Enables continuous unmanned operation with high stability.
06
4G Remote Monitoring
Built-in 4G module enables real-time monitoring and remote access.
PRODUCT PARAMETERS
Technical Specifications
Model
Capacity (t/d)
Power (kW)
Dimensions (mm)
Load (kg)
Product Name
KLFT500
12
65
5500*1700*3800
6200
KLFT Forced Circulation Series
KLFT500
5500*1700*3800
KLFT1000
24
122
7400*1900*5050
10000
KLFT Forced Circulation Series
KLFT1000
7400*1900*5500
KLFT2000
48
178
8000*1900*5400
14850
KLFT Forced Circulation Series
KLFT2000
8000*1900*5400
KLFT3000
72
254
9000*2550*6000
20000
KLFT Forced Circulation Series
KLFT3000
9000*2550*6000
KLFT5000
120
406
10000*2950*6500
48000
KLFT Forced Circulation Series
KLFT5000
10000*2950*6500
KLFT7500
180
600
11500*3200*8000
60000
KLFT Forced Circulation Series
KLFT7500
11500*3200*8000
KLFT10000
240
784
16000*4190*12850
72000
KLFT Forced Circulation Series
KLFT10000
16000*4190*12850
KLFT12000
288
934
16000*4190*12850
78800
KLFT Forced Circulation Series
KLFT12000
16000*4190*12850
KLFT15000
360
1166
18000*4350*12500
82000
KLFT Forced Circulation Series
KLFT15000
18000*4350*12500
WHY CHOOSE US
Benefits of Choosing TIANCHENG
Customized Engineering Solutions
We provide customized wastewater treatment solutions based on different water characteristics, processing requirements, and industrial applications to ensure efficient and reliable system performance.
Tailor-Made Design
Optimized solutions based on customer requirements.
Process Optimization
Professional engineering design for better efficiency.
Industry Experience
Solutions covering multiple industrial fields.
Complete Support
From design to project implementation.
Advanced Manufacturing Quality
As a source manufacturer, Tiancheng controls the complete production process from design and fabrication to quality inspection, ensuring stable equipment performance.
Factory Direct Production
Direct manufacturing with strict quality control.
Precision Fabrication
Advanced equipment ensures production accuracy.
Quality Inspection
Multiple inspection procedures before delivery.
Reliable Performance
Designed for long-term industrial operation.
Energy-Saving Operation
Through optimized evaporation technology and efficient system design, our equipment helps customers reduce energy consumption while maintaining stable treatment performance.
Lower Energy Cost
Improves energy utilization efficiency.
Stable Operation
Maintains consistent treatment performance.
Efficient Process
Enhances overall production efficiency.
Sustainable Solution
Supports environmentally friendly production.
Comprehensive Technical Support
We provide professional support throughout the entire project lifecycle, including technical consultation, installation guidance, commissioning, and after-sales service.
Technical Consulting
Professional engineering communication.
Installation Support
Guidance for equipment installation.
Project Service
Support throughout project delivery.
After-Sales Support
Long-term customer assistance.
LOOKING FOR A RELIABLE WASTEWATER TREATMENT SOLUTION?
Contact our experts today to discuss your project requirements. We will help you select the most suitable equipment and provide professional recommendations based on your process needs.
APPLICATIONS
Industries We Serve
Landfill Leachate
Effective treatment of high-COD and high-salinity landfill leachate, helping reduce discharge volume and meet environmental standards.
Petrochemical Industry
Designed for complex petrochemical wastewater streams, improving treatment efficiency and supporting resource recovery.
Surface Treatment
Suitable for electroplating and metal finishing wastewater with high salt concentrations and challenging contaminants.
Pharmaceutical Industry
Supports the treatment of pharmaceutical wastewater with varying compositions while maintaining reliable operation.
APPLICATION CASE
Successful KLFT Equipment Projects Worldwide
CASE 01
NINGXIA SHENGYOUDE INDUSTRIAL CO., LTD.
Project Name
Mine Water Concentrate 10t/h MVR Evaporation System Operation Service
Project Address
Lingwu City, Ningxia
Treatment Type
Mine Water RO Concentrate
Designed Water Capacity
10 t/h
Process
MVR + Thickening + Centrifugation
Effluent Requirements
pH 6.5~8.5
TDS ≤1000mg/L
COD ≤3mg/L
TDS ≤1000mg/L
COD ≤3mg/L
CASE 02
INNER MONGOLIA DALU INDUSTRIAL PARK EVAPORATION POND
Project Name
High-Salt Wastewater Treatment Service for Dalu Industrial Park Evaporation Pond
Project Address
Ordos, Inner Mongolia
Treatment Type
Evaporation Pond Wastewater
Designed Water Capacity
10 t/h
Process
MVR + Thickening + Centrifugation + Mother Liquor Drying
Effluent Standards
Standards for Reuse of Urban Recycling Water—Water Quality for Industrial Uses (GB/T 19923-2005)
CASE 03
NALCO INDUSTRIAL SERVICES (NANJING) CO., LTD.
Project Name
F-Line Sodium Sulfate and Sodium Sulfate Cleaning Water Evaporation Crystallization Project
Project Address
Nanjing, Jiangsu
Treatment Type
Sodium Sulfate Solution
Designed Water Capacity
1.5 t/h
Process
MVR + Thickening + Centrifugation
Effluent Requirements
Reuse as Production Water
CASE 04
CHANGXING AGRICULTURAL DEVELOPMENT CO., LTD.
Project Name
Changxing County Emergency Domestic Waste Sanitary Landfill MVR System
Project Address
Changxing, Zhejiang
Treatment Type
Landfill Leachate RO Concentrate
Designed Water Capacity
1 t/h
Process
MVR + Thickening + Centrifugation
Effluent Requirements
The treated effluent is returned to the leachate system for further processing to meet the discharge standards speci-fied in the Standard for Pollution Control on the Landfill Site of Municipal Solid Waste (GB 16889-2008).
CASE 05
JIANGSU ENVIRONMENTAL ENGINEERING TECHNOLOGY CO., LTD.
Project Name
Arsenic-containing Wastewater Evaporation Crystallization Project for a Research Institute of China Electronics
Project Address
Nanjing, Jiangsu
Treatment Type
RO Concentrate
Designed Water Capacity
0.3 t/h
Process
MVR + Thickening + Centrifugation
Effluent Requirements
pH 6.5~8.5
Conductivity ≤500 µS/cm
TDS ≤300 mg/L
COD ≤30 mg/L
Conductivity ≤500 µS/cm
TDS ≤300 mg/L
COD ≤30 mg/L
